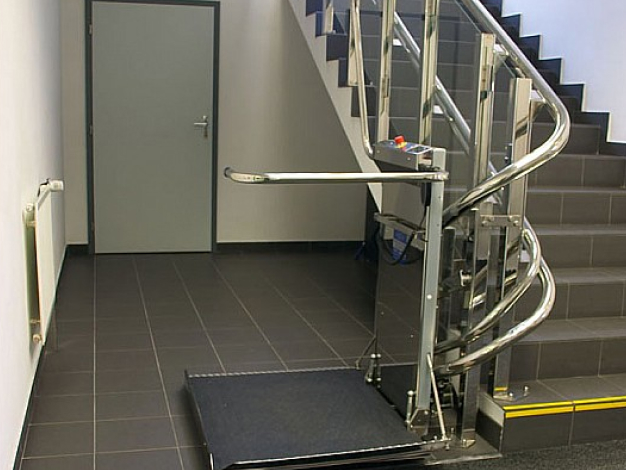

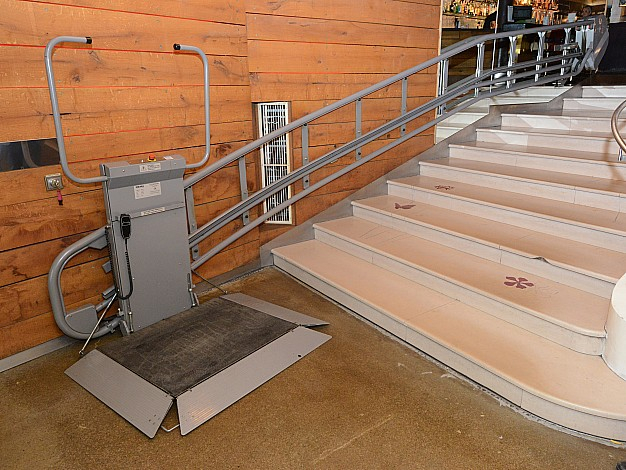

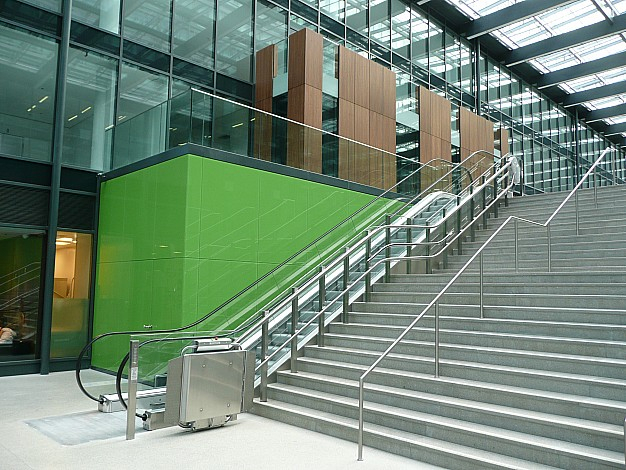

Omega Platformlift for Very Narrow Staircases

Slim design for installations on very narrow staircases Special drive system allows inside and outside curves with small curve radius Robust outdoor lifts with rail length up to 85m Available in any RAL colour Rail and platform covers can be made from stainless steel Display for programming of functions, status output and failure detection The Omega platform lift is the most versatile lift on the market. The very compact and space saving design allows the unit to be installed in almost any staircase and results in a minimal obstruction for passers-by. Each platform lift perfectly blends into its surrounding thanks to the choice of different colours and materials for rails and the platform.

Specifications

Max. loading capacity: 300 kg Surface treatment: Powder coated RAL 7035 All RAL colours optional Stainless steel optional Max.  platform sizes: Length: 1250mm Width: 900mm Speed: 0,06 – 0,15 m/s Noise: Below 60 dB Platform inclination: 0 – 60° Power supply: 1x230V or 3x380V Options: Folding seat Chairlift version CE & TÜV certified based on the latest European norms.
