Liftboy 1-2-3

Perfect solution for lifting heights up to 970 mm

For inside and outside use

Available in all RAL colours

Low weight allows an easy transport between locations

No need for floor fixings

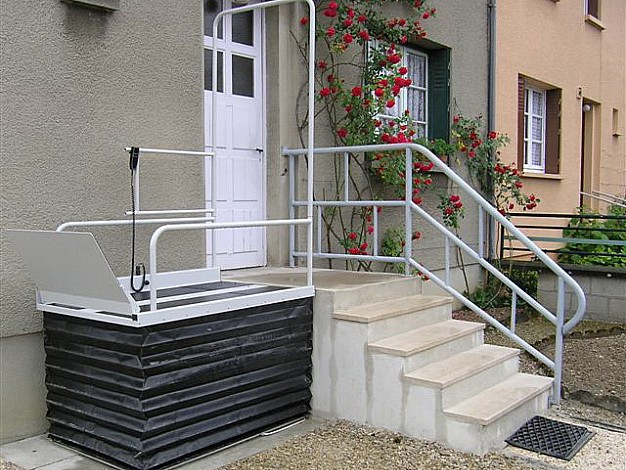

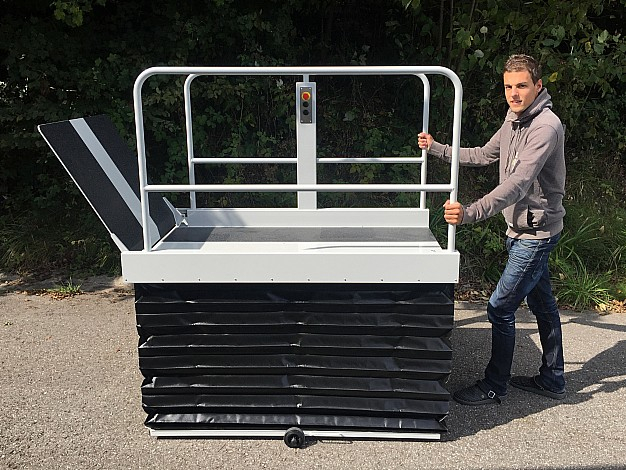

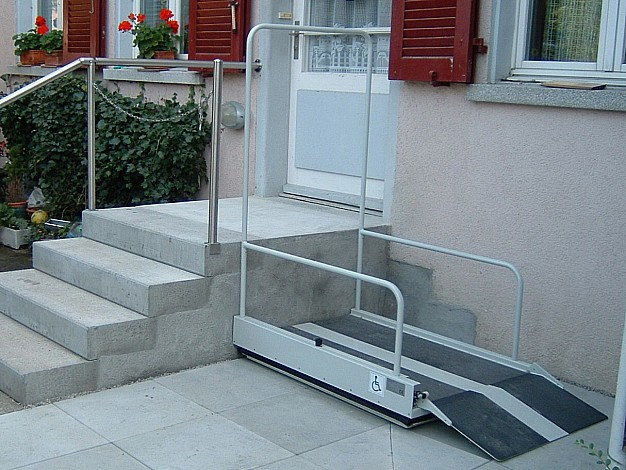

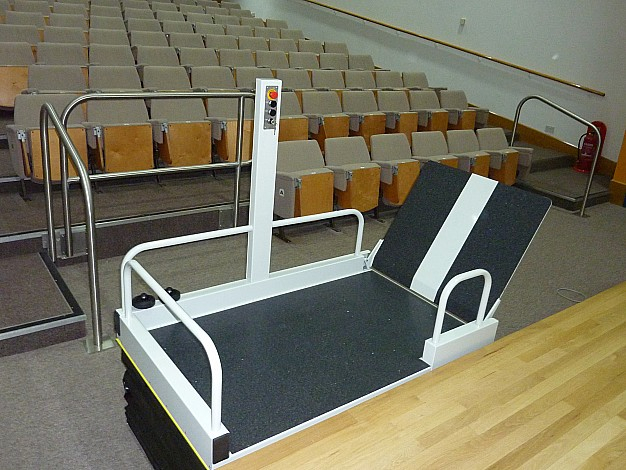

The liftboy can be placed indoor or outdoor in order to overcome height differences of up to 970mm. As a mobile version the Liftboy can be equipped with transport wheels in order to facilitate easy transport to the storage location.

The Liftboy is the perfect solution when ramps are too steep or too long and conventional vertical platform lifts are inadequate and too expensive.

Specifications

Max. lifting height:

Liftboy 1: 595mm

Liftboy 2: 830mm

Liftboy 3: 970mm

Loading capacity:

Liftboy 1: 180kg

Liftboy 2: 300kg

Liftboy 3: 240 kg

Lifting speed:

10 mm/s

Surface treatment:

Powder coated in RAL 7035

Optional any RAL colour

Optional in stainless steel

Net weight:

Liftboy 1: 53kg

Liftboy 2 and 3: 95kg

Power supply:

1×230 V / 24 V

Total width:

Liftboy 1: 810mm

Liftboy 2 and 3: 924mm

Total length:

Liftboy 1: 1180mm

Liftboy 2 and 3: 1505mm
