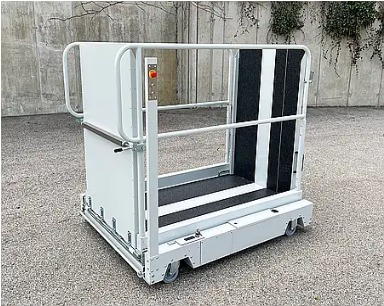

Liftboy 4
Liftboy 4
Perfect solution for mobile lifting requirements up to 1400 mm
Designed specifically for mobile use
For indoor and outdoor use
Available in all RAL colours
Low weight allows easy transport on wheels between locations
The Liftboy 4 is mobile and can be used indoors and outdoors. Originally developed to transport wheelchair users between carriages and platforms, the Liftboy 4 is also used for theatre and concert stages.
The mobile lift is state-of-the-art and easy to operate thanks to its user-friendly design and lightweight construction.
The platform is equipped with foldable ramps, which size can be adjusted to the required width on site.
Specifications
Max. lifting height:
Liftboy 4 S: 1000 mm
Liftboy 4 L: 1400 mm
Min. height of platform height:
Liftboy 4 S: 182 mm
Liftboy 4 L: 250 mm
Platform size (external):
Liftboy 4 S: 1215 x 1628 mm
Liftboy 4 L: 1188 x 1571 mm
Platform size (internal):
Liftboy 4 S: 845 x 1500 mm
Liftboy 4 L: 862 x 1410 mm
Load capacity:
300 kg
Lifting speed:
17 mm/s
Standard colour:
RAL 7035
Optional any RAL colour is possible
Power supply:
24 V DC, battery operated
